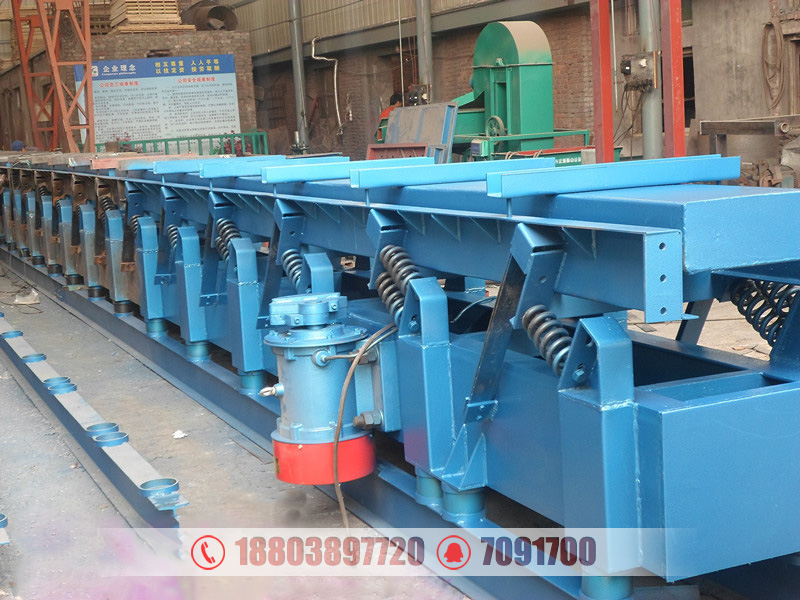

SCG系列耐高温水平振动输送机产品概述:
SCG型长距离高温物料振动输送机广泛应用于矿山、冶金、建材、煤炭、化工、粮食、医药等行业中温度在300℃ 以下的各种粉状、粒状、块状及其混合物等物料的输送，是一种通用性很强且结构先进的高温物料振动输送设备。
Product overview
SCG type long and high temperature material vibration conveyor is widely used in mining, metallurgy, building materials, coal, chemical industry, food, medicine and other various temperature under 300 ℃ in the powder, granular, block and its mixture material such as transportation, is a kind of strong commonality and advanced structure of high temperature material vibration conveyor equipment.
SCG系列耐高温水平振动输送机工作原理:
SCG系列长距离振动输送机采用两台振动电机作为激振源，运用自同步原理，两台振动电机反向转动，使输送机底部平衡架产生往复振动，经过主振簧与导向板簧的作用，带动上部输送槽振动，从而达到输送物料的目的。
SCG型长距离振动输送机有敞开式、封闭式两种，料槽横截面可以做成圆形、矩形和梯形等多种型式。料槽的进料和出料也可根据需要制成一点进料、一点出料，一点进料、多点出料，多点进料、一点出料等多种型式。输送距离较长时可用多台输送机连接起来输送。SCG型长距离振动输送机料槽使用橡胶弹簧或钢簧支承，依靠固定在料槽上的两台振动电机的自同步运转，使料槽产生直线振动。
Working principles
SCG long vibration conveyor series adopts two vibration motor as vibration source, using the principle of self synchronous, two vibration motor reverse rotation, reciprocating vibration of the balance of the bottom of the conveyor frame after the reed and the role of the guide plate spring, drives the upper conveying groove vibration, so as to achieve the purpose of conveying material.
SCG type long and vibrating conveyor with open and closed two, chute cross section can make a circle, rectangle and trapezoid etc. Various type.Chute feed and discharge can be made into a feed according to need, selects a material, feed, more points expected, multipoint feeding and selects a material type.Longer transmission distance available connect more than one conveyor conveyor.SCG type long vibration conveyor rubber spring manger or steel spring bearing, relying on fixed on the feeding trough since the synchronous running of the two vibrating motors, the chute produce linear vibration.
SCG系列耐高温水平振动输送机产品特点:
1.可全封闭输送，消除粉尘污染，也可敞开输送；
2.输送量大、隔热效果好，不需冷却装置，耗电少；
3.结构简单、调试容易、易损件少、维修方便；
4.启动、停机迅速、运转平稳，隔振性能好、噪音小；
5.安装方便，不需专用地基及地脚螺栓，便于移动位置；
6.单机输送距离可达20米，多机软连接可随需要任意延长；
7.可以多点进、卸料，适宜于水泥熟料及矿渣库底、库顶输送。
Characteristic
1. Can be totally enclosed conveying, eliminate the dust pollution, also can open delivery;
2. Bue, good insulation effect, without cooling device, less consumption;
3. Simple structure, easy to debug, less wearing parts, maintenance is convenient;
4. Start and stop quickly, smooth operation, good performance of vibration isolation, noise is small;
5. Easy installation, without special foundation and anchor bolt, easy to move;
6. Single transmission distance of 20 meters, multimachine soft connection can follow need any longer;
7. Can be more inlet and discharge, suitable for cement clinker and slag bottom, top conveying library.
SCG系列耐高温水平振动输送机使用范围:
SCG型长距离高温物料振动输送机广泛适用于建材、治金、化工、采煤采矿、机械制造、煤炭、烟草、粮食、医药等行业。主要用于粉状、粒状、块状及其混合品等物料的输送。例如：水泥行业的原料、中间半成品及成品的输送，化工行业固体原料、半成品的输送,采掘行业矿石、精矿与尾矿的输送等作业上。
Applications
SCG type long and high temperature material vibration conveyor is widely used in building material, metallurgy, chemical industry, coal mining, machinery manufacturing, coal, tobacco, food, pharmaceutical and other industries.Is mainly used in powder, granular, block and its hybrids such as the material of conveyor.For example, the cement industry of raw materials, semi-finished products and finished products among transportation, chemical industry conveying of solid raw materials, semi-finished products, mining industry ore, concentrate and tailings transportation etc.
