GZG系列电机振动给料机产品概述
GZG系列电机振动给料机是一种常用的振动给料设备,主要用于把块状、颗粒状及粉状物料从贮料仓或其它贮料设备中均匀、连续或定量地给到受料设备中，适应于自动配料、定量包装和自动控制。广泛应用于矿山、冶金、煤炭、建材、化工、电力、粮食等行业的连续或定量给料、自动配料等作业上。
GZG系列电机振动给料机在多种场合已经广泛替代了电磁振动给料机，由于采用振动电机为振动源，其转速、功率的控制性非常强，通过控制电机的转速和输送功率，可以达到定量控制，使该系列电机振动给料机的给料量在实际生产中达到定量控制变得非常方便。如在电厂的供煤系统中，普遍采用变频器将电机振动给料机连入自动供煤系统。
GZG系列电机振动给料机在使用过程中，可以调节激振力来改变和控制流量，因而调节方便，流量稳定，噪音低，耗电小，无冲料现象，同时本机具有重量轻，体积小，噪音低，耗电少，保养方便、安装维修方便等特点，如采用封闭式结构，可防止粉尘外溢及环境污染。
Product overview
GZG series motor is the vibration of the vibrating feeder is a kind of common feeding equipment, mainly use for the massive, granular and powdered materials from the storage bin or other storage device in uniform, continuous or quantitatively to the feeding device, adapted to the automatic batching, quantitative packaging, and automatic control.Are widely used in mining, metallurgy, coal, building materials, chemical, electric power, food and other industries of continuous or quantitative feeding, automatic batching and other homework.
GZG series motor vibrating feeder on multiple occasions has widely replaced the electromagnetic vibration feeder, due to the vibration motor as vibration source, the speed, power control is very strong, and speed of the motor by controlling the transmission power, can achieve quantitative control, make this series motors are vibrating feeder quantificationally achieve quantitative control becomes very convenient in practical production.As in the coal supply system of power plant, the generally used inverter to motor vibrating feeder connected to automatic coal supply system.
GZG series vibrating feeder motor in use process, can adjust vibration force to change and control flow, thus convenient adjustment, stable flow, low noise, small power consumption, no flow phenomenon, at the same time, the machine has light weight, small volume, low noise, less consumption, convenient maintenance, installation and maintenance is convenient wait for a characteristic, such as the close structure, can prevent the dust spillover and environmental pollution.

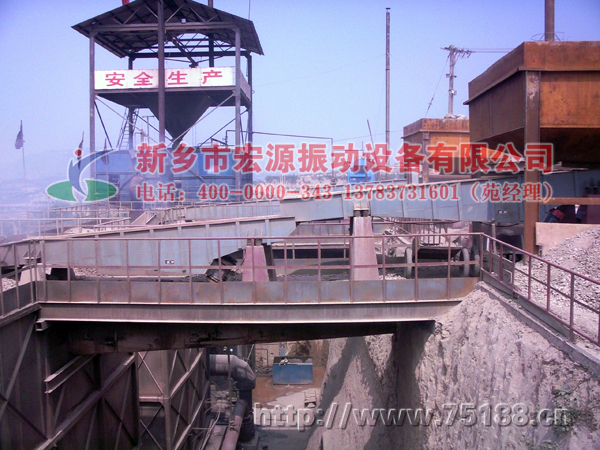

电机振动给料机使用现场图
Working site

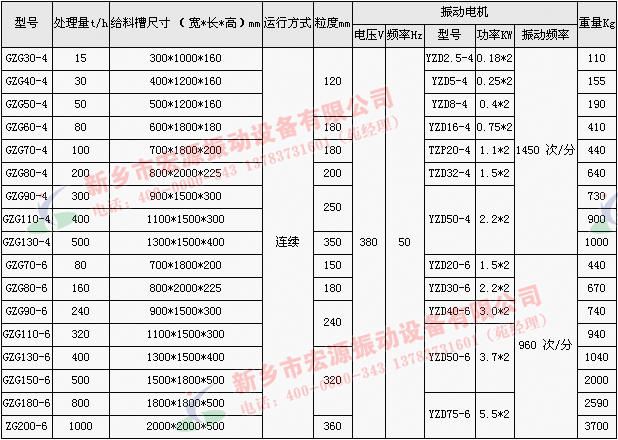

GZG系列电机振动给料机主要技术参数表
Parameters
GZG型电机振动给料机产品主要特点
1.结构简单、重量轻、噪音低、工作可靠、给料能力大、安装维护方便。
2.利用特制振动电机自同步原理，起动迅速、工作稳定、停车平稳。
3.物料按抛物线轨迹连续向前作跳跃运动，因此给料槽磨损较小。
4.由于可以瞬时地改变和启闭料流，所以给料量有较高的精度。
5.本系列电机振动给料机不适合有防爆的场合。
Characteristic
1. Simple structure, light weight, low noise, reliable operation, the feeding capacity, convenient installation and maintenance.
2. Using the synchronous motor with a special vibration principle, starting fast, working steady, smooth parking.
3. The material according to the continuous forward parabolic trajectory for jumping movement, therefore the feeding trough less wear and tear.
4. Due to the instantaneous to change and open/close material flow, so had a higher accuracy of quantificationally.
5. This series motor is vibrating feeder is not suitable for places that have requirements of explosion-proof.
GZG型电机振动给料机产品工作原理
GZG系列给料机的给料过程是利用特制的振动电机或两台电动机带动激振器驱动给料槽沿倾斜方向作周期直线往复振动来实现,当给料槽振动的加速度垂直分量大于重力加速度时,槽中的料被抛起,并按照抛物线的轨迹向前跳跃运动,抛起和下落在瞬间完成,由于激振源的连续激振,给料槽连续振动,槽中的物料连续向前跳跃,以达到给料的目的。
Working site
The process of the GZG series feeder is to use special vibration motor or two electric motors to drive vibrator driven feed slot linear reciprocating vibration along the tilt direction for a cycle, when the feeding trough vibrating acceleration vertical component is greater than the acceleration of gravity, from the material in the tank is thrown, and according to the parabola track jumping movement forward, throwing up and down in instantaneous, due to the continuous vibration excitation source, continuous vibration feeding groove, groove continuous leap forward, the material to achieve the purpose of feeding.
GZG型电机振动给料机产品适用范围
GZG系列电机振动给料机广泛应用于矿山、冶金、煤炭、建材、轻工、化工、电力、粮食等各行业中，用于把块状、颗粒状及粉状物料从贮料仓或漏斗中均匀连续或定量地给到受料装置中去。如向破碎、选煤、筛分、运输、包装机械等给料、配料等。
Applications
GZG series motor vibrating feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries, for the massive, granular and powdered materials from storage bin or funnel homogeneous continuous or to quantitatively to the device.Such as crushing, coal preparation, screening, transportation, packaging machinery and other feed, ingredients, etc.
