DZSF系列直线振动筛

DZSF直线振动筛（直线筛）产品概述

    DZSF系列直线振动筛简称直线筛，是一种用双振动电机驱动的通用型振动筛分设备。装备的两台振动电机做同步、反向旋转时，其偏心块所产生的激振力在平行于电机轴线方向的合力相互抵消，而在垂直于电机轴方向的合力在偏心块同向时达到最大，因此该系列振动筛的运动轨迹为一直线。两电机轴相对筛面有一倾角，在激振力和物料自重力的合力作用下，物料在筛面上被抛起跳跃式向前作直线运动，从而达到对物料进行筛选和分级的目的。
     DZSF系列直线振动筛适用于粒度在0.074-5mm,含水量小于7%、无粘性的各种干式粉状物料的筛分,最大给料粒度一般不大于10mm。 该系列振动筛也可以进行液体的过滤筛分作业，多用于污水处理，亦可以用于较大颗粒的煤粉类物料的筛分，在进行较大物料处理时，筛体厚度需加厚，电机功率需加大，换装冲孔筛板作为筛网等。详细情况，请咨询我公司技术人员。
Product overview
   DZSF series linear vibrating screen or linear screen machine, is a kind of vibration with double motor drive general-purpose equipment vibrating screen points.Equipped with two vibrating motors do synchronization, reverse rotation, vibration force produced by the eccentric block in parallel to the axis of the motor together cancel each other out, and in the direction perpendicular to the motor shaft together in the same as eccentric block to achieve maximum, so the motion trajectory of series vibrating screen is a straight line.Two motor shaft relative screen surface has a Angle, the vibration force and material since the gravitational force, under the action of the material on the screen was thrown up by leaps and bounds ahead for linear motion, so as to achieve the purpose of the screening and grading the supplies.
   DZSF series linear vibrating screen is suitable for the size in 0.074-5 mm, water content is less than 7%, non-viscous all kinds of dry powder material screening, the largest feed particle size is generally not greater than 10 mm.This series of vibrating screen can also be liquid filtration screening operations, used in sewage treatment, also can be used for larger particles of the pulverized coal class material screening, when making great material processing, the screen body thickness need to thicken, motor power need increase, change punching sieve plate as screen mesh, etc.Details, please consult our company technical personnel.DZSF series linear vibrating screen or linear sieve, is a kind of vibration with double motor drive general-purpose equipment vibrating screen points.Equipped with two vibrating motors do synchronization, reverse rotation, vibration force produced by the eccentric block in parallel to the axis of the motor together cancel each other out, and in the direction perpendicular to the motor shaft together in the same as eccentric block to achieve maximum, so the motion trajectory of series vibrating screen is a straight line.Two motor shaft relative screen surface has a Angle, the vibration force and material since the gravitational force, under the action of the material on the screen was thrown up by leaps and bounds ahead for linear motion, so as to achieve the purpose of the screening and grading the supplies.


DZSF直线振动筛（直线筛）主要特点

    DZSF系列直线振动筛具有体积小、结构简单合理、筛分精度高、全封闭无污染、低噪音、低能耗、维修方便、保养简单、筛网寿命长等优点。可单层或多层使用，最多可达到五层，筛框一般为木制结构，若筛孔较大，产量较高时筛框可制成钢质结构，若筛分腐蚀性物料，与物料接触部分采用不锈钢制作。电机安装方式可分为下振式和侧振式，减振器安装方式可分为座式和吊挂式。另我公司还可以根据用户需要进行特殊设计制造。
Features

DZSF直线振动筛（直线筛）适用行业

    DZSF型直线振动筛适用于0.74-10mm，含水小于7％，无粘性物料的任何干式物料的筛分。主要用于磨料磨具原料、化工、塑料、医药、树脂粉、陶瓷原料、冶金、建材、粮食、化肥等行业中的干式粉状、细颗粒状或细微粉物料的筛分。
Applications
    DZSF type linear vibrating screen is suitable for 0.74 to 10 mm, water content is less than 7%, non-viscous materials any dry material screening.Mainly used in abrasives raw materials, chemical industry, plastic, medicine, powder, ceramic materials, metallurgy, building materials, food, chemical fertilizer and other industries in the dry powder, subtle fine granular or powder material screening.

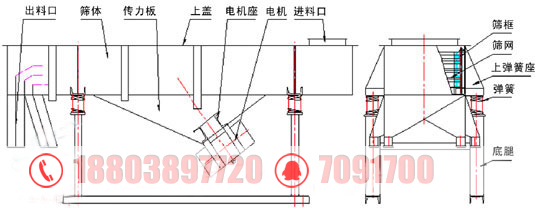

DZSD直线振动筛结构图

Structure picture

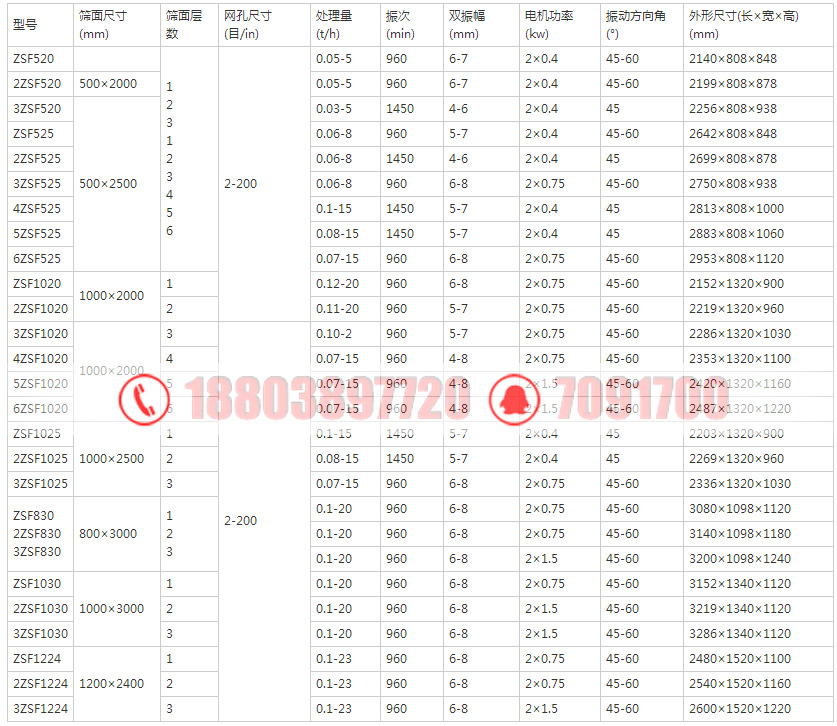

DZSF直线振动筛主要技术参数表

Parameters
