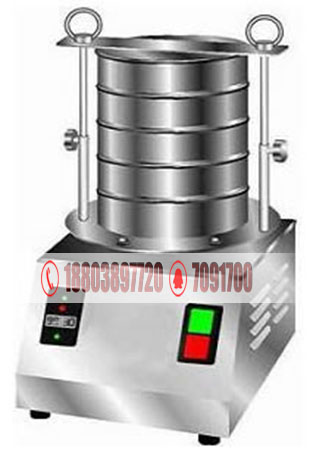

BZS-200标准检验筛是以振动电机作为振动源的，振动电机振动带动筛机底座振动，再通过底座传导到安放在底座上的标准试验筛上，使小于试验筛筛面网孔的物料颗粒筛分进下层试验筛，如此层层筛选，使每层试验筛内只留相同粒度的物料。达到不同粒度的分离并确定此物料的粒度组成。使试验筛中的物料能有效地筛分、分级、过滤的目的。也成为试验筛，分析筛，分样筛等。
BZS - 200 standard test screen is a vibration motor as vibration source, vibration motor drive the vibration screen machine base, through the base to put at the base of the standard test on the screen, to make them less than the test screen escapes hole material particles test screen into the lower level, so the screening, each layer test only stay in the same particle size of materials.Achieve the separation of different particle size and the grain size composition of the material were determined.In the test screen material can effectively screening and classification, filtering purposes.Also be test screen, screen analysis, sample points screen, etc.
BZS-200标准检验筛技术参数
|
序号 |
名称 |
单位 |
参数 |
|
1 |
可放筛具直径 |
mm |
φ200/φ100/φ75 |
|
2 |
筛分粒度 |
mm |
0.025～3 |
|
3 |
电机功率 |
Kw |
0.12(0.15普通电机) |
|
4 |
噪音 |
dB |
小于50 |
|
5 |
振幅 |
mm |
0～3 |
|
6 |
振动频率 |
次/分 |
1400 |
|
7 |
外型尺寸 |
长宽高 |
350：380：300+N*50 |
|
8 |
电源 |
V;HZ |
220;50 |
|
9 |
整机重量 |
Kg |
35 |
