精细振动筛

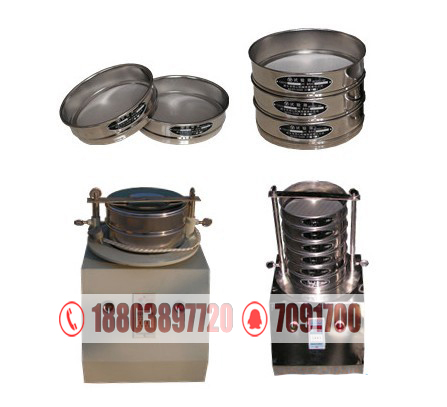

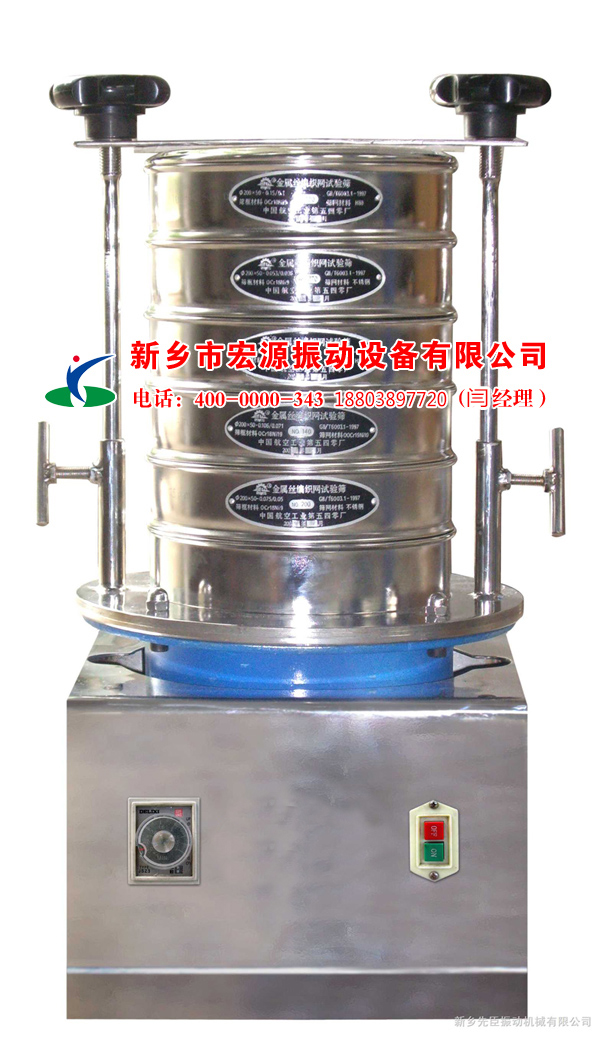

BZS-200电机式标准检验筛

BZS-200电机式标准检验筛

【产品类别】精细振动筛

【性能评测】★★★★★

【产品简介】 标准检验筛是一种实验室筛分机,又称试验筛、分样筛、分析筛,主要用于大学的实验室、研究所或者一些公司内部的实验室用的。它不同于一般的振动筛分机,它是有国家标准的,标准检验筛筛机和标准检验筛筛框都有一定的标准限制。...


BZS-200检验筛|标准检验筛产品概述:

检验筛|标准检验筛|标准分析筛是集粉粒分级、液体过滤为一体的标准分析筛,分析效率高、范围广、可同时分出8组样品;配合使用电子计时器,同种物料设定同等分析时间,保证最低的误差,准确判断在线产品质量;其噪音低、体积小样;有0.045-2.5MM粒度的分产品,适应多规格标准筛。标准检验筛广泛用于冶金、粉粒、化工、医药、建材、地质、国防等部门的科研生产、试验室、质检室中,对颗粒状、粉状物料的粒度结构、液体类固体物含量及杂物量的精确筛分、过滤、检测。该产品噪音低、筛体标准,筛、滤样品精度高。

BZS-200检验分析筛广泛应用于实验室、质检室等检验部门进行颗粒、粉类物料粒度分布测定,产品杂质含量,液体固形物含量的测定分析。该产品结构紧凑、噪音低、效率高、精度准确等特点突出,采用新型动力发生器,产生多元高频振动,对物料进行高效筛选、测定。同时可根据不同物料通过电子延时器实现不同的工作时间,把检验误差降到最低程度,保证样品分析数据的一致性,对产品质量做出精确判断。
Product overview
Inspection screen | standard screen| standard analysis is set liquid filtration powder grading, as one of the analysis standard screen, analysis of high efficiency, wide range, can be separated eight set of samples at the same time;Cooperate to use electronic timer, the same material set the same analysis time, to ensure that the minimum error, accurately judge the online product quality;Its low noise, small volume;Have 0.045 2.5 MM size of sample products, to adapt to the standard screen of many specifications.Standard test screen is widely used in metallurgy, powder, chemical, pharmaceutical, building materials, geology, defense and other departments of scientific research and production, laboratory, quality control room, the structure of granular, powder material particle size, solid content of the liquid and the amount of clutter accurately screening, filtering, detection.The product standard, low noise, screen body sieve, filter samples with high precision.

BZS - 200 test analysis screen is widely used in laboratory, quality inspection room inspection department for granular, powder materials such as particle size distribution measurement, product content of impurities, the determination of liquid solid content analysis.The product structure is compact, low noise, high efficiency, precision accuracy and other characteristics, USES the new type of power generator, multivariate high-frequency vibration of efficient screening and determination of the supplies.At the same time can be achieved through electronic delay timer according to different materials of different working time, reduce the test error to a minimum, ensure the consistency of the data samples analysis, make accurate judgment the quality of product.

检验筛|标准检验筛产品特点:

1、体积小、重量轻、移动方便。
2、筛分精度高、可筛分至325目。
3、噪音低。
4、结构多样,分碳钢喷塑和不锈钢两种,用户可选择。
5、一次性投料不大于200g。
Features
1, small volume, light weight, easy to move.
2, screening of high precision, can screen to 325 mesh.
3, low noise.
4, structure, diversity, carbon coating and stainless steel two kinds, the user can choose.
5, disposable feeding is not more than 200 g.

检验筛|标准检验筛主要应用行业:

检验筛|标准检验筛广泛用于冶金、粉粒、化工、医药、建材、地质、国防等部门的科研生产、试验室、质检室、高等院校实验室等。
Applications
Inspection standard screen |standard screen is widely used in metallurgy, powder, chemical, pharmaceutical, building materials, geology, defense and other departments of scientific research production, laboratory and quality inspection room, laboratory in colleges and universities, etc.


工作条件
供电电源:交流220V
The working conditions
Power:Alternating current 220V

技术要求及配置
主要功能
标准检验筛是集粉粒分级、液体过滤为一体的标准检验筛;适用于实验室,质检室对颗粒、粉类进行粒度结构精确分析,液体类固形物含量及杂物量的测试分析。
Requirements and configuration
Mainly Function

Standard test screen is a concentration of liquid filtration powder grading, as one of the standard test screen;Apply to the laboratory, quality control room for granule, powder, granular structure precise analysis, liquid solid content and an analysis of the test of the clutter.

技术指标
★层数:2~5层;
★筛分粒度:0.045~2.5mm;
频率:1420次/min;
功率0.125kw;
★筛面有效直径:φ200mm
Technology parameter
★layer number:2-5
★granularity:0.045-2.5mm;
★Frequency:1420times/min
★Power:0.125KW
★surface diameter:φ200mm

特点
Characteristic
具有噪音低、效率高、精度高等特点。产生多元高频振动,高效筛滤样品;标准筛体,确保样品分析高精度;电子延时器,可根据需要设定同种物料同等筛分时间、保证样品的分析数据统一性,把检验误差降到最低程度,以便对产品质量做出准确判断。
标准检验筛筛框采用SUS304(0Cr18ni9)不锈钢拉伸抛光而成,壁厚0.6毫米,表面光可鉴人,整体成型坚固耐用,没有磁性, 标准检验筛筛网与标准检验筛筛框通过锡焊固定,不会松弛。能耐300度以下高温。
    It has a advantage of Low noise, high efficiency, high precision, etc.Multivariate high-frequency vibration of efficient screen samples;Standard screen, make sure the sample analysis and high precision;Electronic delay device, can according to need to set the same material as screening time, ensure the analysis of the sample data of unity, the testing error to a minimum level, in order to make accurate judgment the quality of product.
    Standard test screen flame adopts SUS304 (0 cr18ni9) stretch polishing stainless steel, thickness is 0.6 mm, exterior smooth gleaming, integral forming strong and durable, no magnetic, standard inspection sieve sieve and standard sieve sieve box fixed by soldering, not flabby.Can withstand temperatures up to 300 degrees.
配置
Configuration
标配
Standard
