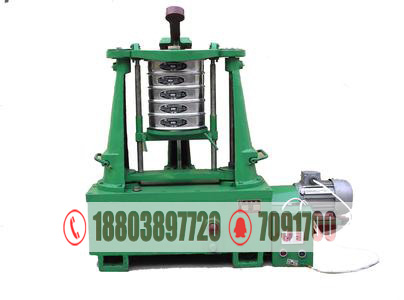

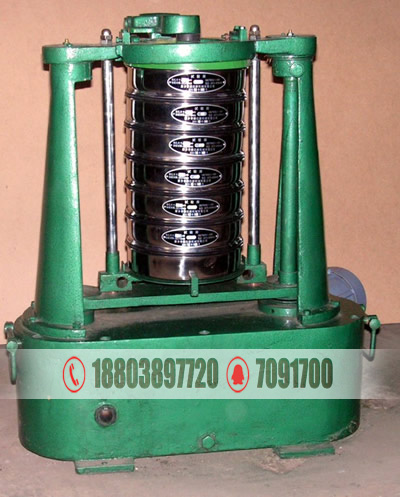

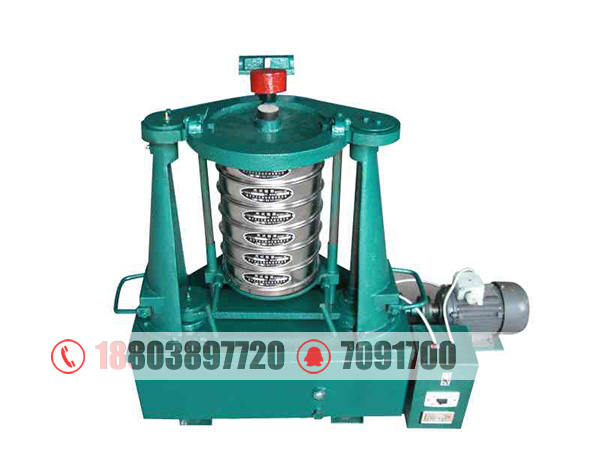

PZJ-5A拍击筛原理：
电机带动齿轮通过同步带传动到主轴上，经齿轮变速后主轴按要求的转速转动，主轴带动偏心轮使滑板做往复运动，带动安装在滑板托盘中的试验筛左右摇动，同时主轴带动顶杆齿轮转动，变速后顶杆齿轮通过凸轮顶击顶杆，顶杆使拍锤上下拍击试验筛上盖，使得试验筛、分样筛中的物料往复和上下振动，使小于试验筛筛面网孔的物料颗粒筛分进下层试验筛，如此层层筛选，使每层试验筛内只留相同粒度的物料。达到不同粒度的分离并确定此物料的粒度组成。
Working principles
Motor driven by synchronous belt transmission to the main shaft, gear after gear main shaft according to the requirements of the rotational speed, the spindle drive the eccentric wheel to do reciprocating motion, the drive is installed in the skateboard shaking around the test sieve tray, main shaft drives the plunger gear running at the same time, the speed change after knockout plunger plunger gear through the CAM, plunger, make up and down pat hammer blows test sieve cover, make the material in the sample test sieve, sieve reciprocating and vibrates, make them less than the test screen escapes hole material particles test sieve into the lower level, so the screening, each layer test only stay in the same particle size of materials.Achieve the separation of different particle size and the grain size composition of the material were determined.
PZJ-5A拍击筛特点：
1、传动准确，一致性好：由于采用齿轮带动同步带传动，转速比准确，不会产生一般三角带的掉速现象（三角带有3%的掉速率），使每一次相同时间下的筛分运动相一致（齿轮的传动比准确率99.99%），同时设备安装了数字定时器，设定好时间后到时自动停机保证检验或生产的一致性要求。
2、寿命长、维修、维护成本低：由于两齿轮没有直接接触不会磨损，同步带与齿轮的接触适应性好寿命长，维修时只需更换同步带，同时偏心轮组采用了整体方式，再次安装准确方便，转动部分采用轴承（标准件），不易磨损，成本低，易更换。降低了维修的技术要求和成本。
3、筛分效率高：这种筛分方式使筛分时同时具备往复和拍击振动两种运动，不会堵塞筛面，下料快，筛分彻底。
4、洁净：由于采用了这种传动方式不需加油，降低了维护成本和保护了环境，对生产环境要求洁净十分有利。
Features
1, transmission accuracy, good consistency: as a result of the gear drive synchronous belt transmission, speed ratio accurately, won't produce out speed phenomenon in general triangle (triangle) with a 3% off rate, make the screen every time under the same exercise consistent (99.99% accuracy of gear ratio), digital timer device installed at the same time, set a good time after automatic stop when ensure the consistency of the test or production requirements.
2, long service life, low maintenance cost: due to the two gear has no direct contact with no wear and tear, synchronous belt and gears contact adaptability good life is long, only when the repair replacement synchronous belt, eccentric group adopted the whole way at the same time, again is accurate, convenient installation, rotating part adopts bearing (standard), is not easy to wear and tear, low cost, easy to replace.Technical requirements and reduces the maintenance cost.
3, high screening efficiency, this way of screen points at the same time with reciprocating and panting vibration of two kinds of sports, not blocking screen surface, fast cutting, screening thoroughly.
4, clean: due to the adopted the transmission way does not need to refuel, reduce the maintenance cost and protect the environment, requirements for production environment clean.
PZJ-5A拍击筛使用行业用途分析：
广泛应用于食品、医药、化工、磨料、颜料、矿山、冶金、地质、陶瓷、国防等行业的教学科研单位、实验室、检验室、生产控制等对固体、粉体、浆液料等物料的检验、筛分、分级、粒度分析、杂物含量分析等。特别是用于金刚石等超硬材料生产筛分。
Applications
Widely used in food, medicine, chemical, abrasive, pigment, mine, metallurgyain, defense and other industries for teaching and scientific research units, laboratories, checkout room, production control for solid, powder, slurry material and other materials such as inspection, screening, grading, granularity analysis, sundry content analysis, etc.Especially for diamond superhard materials production such as screening.
