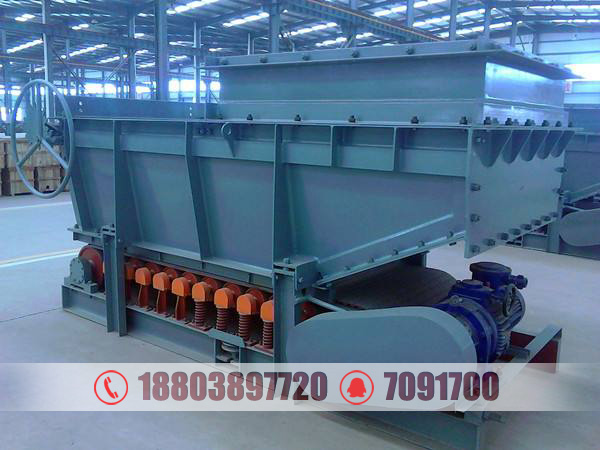

甲带给料机



甲带给料机概述

    甲带给料机是我公司研发的新型环保、节能型给料机。针对给料机客户反馈的问题，我们对传统的往复式给料机的确定进行了升级改进，克服了振动给料机和往复式给料机的缺点，变间断给料方式为连续给料方式。使给料量动态连续可变，给料系统更加稳定、高效、节能、环保。
    给料机是物料输送系统中不可缺少的设备，目前料仓给料系统中所使用的给料机主要有K型往复式和振动式给料机，两种给料方式的给料机都有各自的一些缺点，例如K型往复式给料机需要较大的驱动功率，结构受力也大，设备重量大，运动件磨损快，维修量大；由于给料不连续，生产率较低。振动式给料机工作时，噪音较大，给料量不稳定等缺点。我公司针对这一情况，结合多年的给料机生产经验，研制生产出甲带给料机，有效的克服了以上缺点。
Product overview
    Armour feeder machine is my company developed a new type of environmental protection, energy-saving feeder.Aiming at the problem of feeder customer feedback, we improve the determination of a traditional reciprocating feeder upgraded, overcome the vibrating feeder and reciprocating feeder faults, variable intermittent feeding way for continuous feeding way.Make the dynamic continuous variable quantificationally, feeding system is more stable, high efficiency, energy saving, environmental protection.
   Feeder is indispensable equipment in the conveying system, the bunker feeding system used in the main feeder are K type of reciprocating and vibrating feeder, two feeding way of feeding machine has its own drawbacks, such as K type reciprocating feeder need large driving power, structure is big, equipment weight, quick wear of moving parts, large amount of maintenance;Due to the feeding of discontinuity, productivity is low.Vibrating feeder is working, the noise is bigger, the disadvantage of quantificationally instability.I company for this situation, combine the feeder production experience for many years, the development and production from bring machine, effectively overcome the above shortcomings.

甲带给料机结构：

   连接段安装于料仓口部，在其下安装导料槽，在导料槽下安装甲带给料装置；甲带给料装置由驱动滚筒、缓冲托辊及支架、改向滚筒、甲带、胶带、张紧装置等零部件组成；驱动装置由电机和无极变速减速机组成，并通过链传动带动驱动滚筒；驱动装置和甲带给料装置均安装在底架上，并可调整位置；在导料槽上部，安装有检修闸门机构，在维护检修时实现进料口的开闭。
Structure
  Connection part that installed on bin mouth, under which the installation guide chute, under the guide chute installation armour to device;Armour gives device consists of drive roller, buffer roller and stents, redirection roller, a tape, adhesive tape, tensioning device and other components;Drive by the motor and CVT reducer unit, and through the chain drive the driving drum;Drive and armor to device are installed on the chassis, and can adjust the position;In the upper guide chute, install a bulkhead gate, at the time of maintenance implementation inlet opening and closing.

甲带给料机的优点

    1、给料量大、运行功率小、节能、环保、高效
    2、运行平稳，噪音小，保护环境；
    3、磨损小，维修量少，安装维护简便，使用寿命长；
    4、零部件通用性强，安装、维修简便 ；
    在必要时，特定工矿下，可把甲带给料机的甲带去掉，直接组成带式给料机，
Features
   1, large quantificationally,small operating power, energy saving, environmental protection and efficient
  2, smooth operation, low noise, environmental protection;
  3, less wear, less maintenance, easy installation and maintenance, long service life.
  4, spare parts versatility, convenient installation, maintenance;
When necessary, under the specific industrial and mining, and can bring a belt feeder are removed, a direct belt feeder,

甲带给料机的技术参数

Parameters

型号	功率	电压	调速方式	速度范围（m／s）	给料范围（t／h|）	重量（kg）
GLD800／5.5／S	5.5	AC380 AC660 AC1140 可选	手动	0.4~0.7	160~800	3700
GLD800／5.5／B			自动	0.42~0.7	480~800	3800
GLD2000／5.5／S	5.5／7.5①		手动	0.6~0.1	400~2000	4200
GLD2000／5.5／B			自动	0.2~0.1	1200~2000	4300
GLD3300／7.5／S	7.5		手动	0.2~0.1	660~3300	5200
GLD3300／5.5／B			自动	0.6~0.1	1980~3300	5300
GLD4400／11／S	11		手动	0.3~1.5	880~4400	6200
GLD4400／11／B			自动	0.9~1.5	2640~4400	6300

    如以上参数不能满足您的需要，我们也可以根据你的详细需求对甲带给料机定制设计。
   If the above parameters can't meet your needs, we also can according to your detailed requirements on the armour gives machine customization design.
