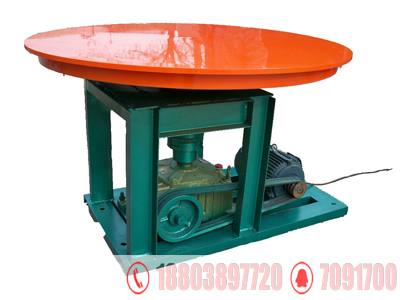

圆盘给料机

    圆盘给料机主要供给选煤、选矿、烧结、电力、建材等行业中，装在运物料机上的一种附属机械作为运输机给料之用。圆盘给料机工作原理和结构：本机分敞开吊式（DK）、封闭吊式（DB）、敞开座式（KR）、封闭座式（BR）。采用电机分交流电机和调速电机，当采用调速电机应补差价。（KR无调速电机）。圆盘给料机上钢板盘（情板）其材料分三种有45Mn2Mn钢板料“G”、辉绿岩情板“H”，注明何种形式。（KR传动形式仅有一种)
    Disc feeder mainly supply coal preparation, mineral processing, sintering, electric power, building materials industries, pack on a subsidiary of the material on the machine for the use of conveyor feeding.Disc feeder, working principle and structure: the machine open hanging (DK), closed type (DB), open a type (KR), closed type (BR).The motor ac motor and speed regulating motor, when using speed regulating motor should be the difference.No speed regulating motor (KR).Disc feeding on the steel plate (feeling) its material in three kinds of 45 mn2 Mn steel material "G", diabasic YanQing board "H", indicating what form.(KR transmission form only one)

圆盘给料机技术参数：

Parameters

型号	圆盘直径	生产能力m3/h	圆盘转数r/min	物料粒度mm	安装形式	减速机		电动机		重量Kg	外形尺寸 长*宽*高
						型号	速比	型号	功率
DK6	600	0.6-3.9	8	25	敞开吊式	5308-01	53	Y90L-6	1.1	403	855*960*925
								JZTY21-6
DK8	800	1.4-7.6	8	30	敞开吊式	5308-1-0	53	Y90L-6	1.1	555	1085*1089*1520
								JZTY21-4
DK10	1000	2.5-16.7	7.5	40	-	5312-01	52	Y100L-6	1.5	827	1350*1350*1427
								JYTY22-4
DK13	1300	4.2-27.9	6.5	50	-	5316-01	54	Y132S-6	3	1150	1735*1516*1427
								JZTY32-4
DK16	1600	7-18.6	6	60	-	5319-01	62	Y132M1-6	4	2125	2115-2050*1535
								JYTY41-4
DK18	1800	9.2-60	5	70	-	5322-01	62	Y132M2-6	5.5	2900	2365*2030*1963
								JZTY42-4
DK20	2000	13.6-38	5	80	-	5322-01	62	Y132M2-6	5.5	3140	2620*2150*2165
								JZTY42-4
DB6	600	0.6-3.9	8	25	封闭吊式	5308-01	53	Y90L-6	1.1	490	855*980*1052
								JZTY21-4
DB8	800	1.1-7.6	8	30	-	5308-1-0	52	Y90L-6	1.1	597	1085*1089*1152
								JZTY21-4
DB10	1000	2.5-16.7	7.5	40	-	5212-01	52	Y100L-6	1.5	906	1263*1350*1237
								JZTY22-4
DB13	1300	4.2-27	6.5	50	-	5316-01	54	Y132S-6	3	1240	1516*1735*1597
								JZTY32-4
KR10	1000	0-14	7.5	40	敞开座式	TZQ350	31.5	Y112M-6	2.2	740	720*1430*650
KR15	1500	0-25	7.5	55	-	JZQ400	31.5	Y132M2-6	5.5	1280	920*1750*720
KR17	1700	0-50	7.5	60	-	JZQ400-Ⅲ-1Y	31.5	Y132M2-6	5.5	1320	920*1750*720
KR20	2000	0-100	7.5	80	-	JZQ500-Ⅲ-1Y	31.5	Y160L-6	11	1754	1030*1965*810
BR10	1000	0-13	6.3	50	封闭座式	ZS50-8-ⅠⅡ	63	Y132S-6	3	1223	1932*1520*895
BR15	1500	0-30	6.3	50	-	ZS75-3-ⅠⅡ	63	Y160M-6	7.5	2710	2841*1920*1122
BR20	2000	0-80	4.79	50	-	BR20-2	87	Y160L-6	11	5234	3374*2016*1122
								JZTY61-4	15
BR25	2500	0-120	4.72	50	-	BR25-2	88.2	Y200L1-6	18.5	7747	3790*2500*1122
								JZTY71-4	22
BR30	3000	180	3.1	20	-	BR30-2	128.87	Y200L2-6	22	13350	4600*2958*1420

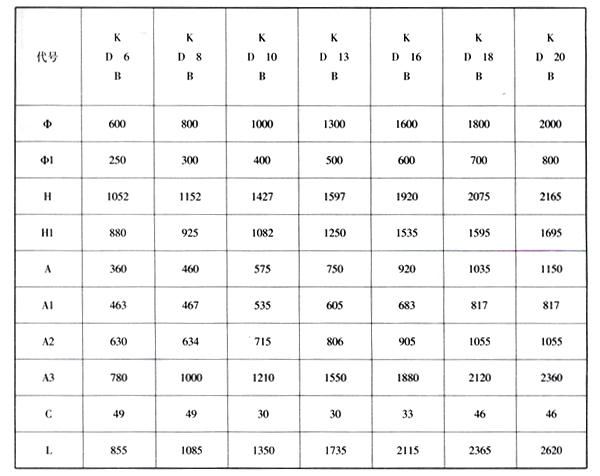

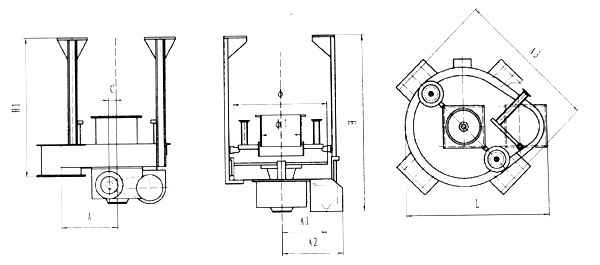

DK、DB型圆盘给料机主要外型尺寸

Boundary dimension

DK、DB型吊式圆盘给料机说明

1、DK、DB型圆盘给料机供货时一般为减速机及普通电机，如需在特殊场合中使用，需订货时说明，如改用防爆电机、减速机或有其它特殊要求等。
2、DK、DB型圆盘给料机，也可制成座式，并且也分闭式和开式两种结构。

Notes
1,Type DK, DB when the disc feeder supply generally for reducer and ordinary motor, for use in special occasions, ordering, such as use explosion-proof motor, reducer, or have other special requirements, etc.
2,Type DK, DB, the disc feeder, can also be made from a type, and also points closed and open two kinds of structure.
