螺旋给料机概述
螺旋给料机是工农业各部门机械化运输工作的主要机组，可使运输工作减轻劳动强度，提高工作效率，应用范围很广。集粉体物料稳流输送、称重计量和定量控制为一体的新一代产品；作为计量、配料的整机自动化装置，可为现场管理、操作提供准确的计量数据和控制手段。 螺旋给料机适用于各种工业生产环境的粉体物料连续计量和配料；采用了多项先进技术，运行可靠，控制精度高；尤其适用于建材、冶金、电力、化工等行业粉体物料的连续计量和配料。Product overview
Screw feeder is a major industrial and agricultural departments mechanization transportation job unit, can make the shipping work reduce labor intensity, improve work efficiency, a wide range of applications.Steady flow set powder material conveying and quantitative weighing measurement and control for the integration of a new generation of products;As measuring, batching machine automation device, can provide accurate measurement data for field management, operation and control means.Screw feeder is suitable for all kinds of industrial production continuous measurement of powder material and ingredients;Have adopted a number of advanced technology, reliable operation, high control accuracy;Especially in building material, metallurgy, electric power, chemical and other industries the continuous measurement of materials and ingredients.
螺旋给料机的工作原理
螺旋给料机把经过的物料通过称重桥架进行检测重量，以确定胶带上的物料重量，装在尾部的数字式测速传感器，连续测量给料机的运行速度，该速度传感器的脉冲输出正比于给料机的速度，速度信号和重量信号一起送入给料机控制器，控制器中的微处理器进行处理，产生并显示累计量/瞬时流量.该流量与设定流量进行比较，由控制仪表输出信号控制变频器改变给料机的驱动速度，使给料机上的物料流量发生变化，接近并保持在所设定的给料流量，从而实现定量给料的要求。Working principles
Screw feeder through the material by weighing bridge test weight, to determine material weight on the tape, in a digital speed measuring sensor, at the end of the continuous measurement of feeder speed, the speed sensor pulse output is proportional to the speed of the feeder, speed signals and weight together into the feeder controller, the controller of the microprocessor for processing, producing and displays a cumulative amount/instantaneous flow. Compared with the traffic and set up flow, is controlled by a control instrument output signal frequency converter to change feeder driving speed, the feeding machine of material flow changes, close to set and maintain in feed flow, so as to realize the quantitative feeding requirements.

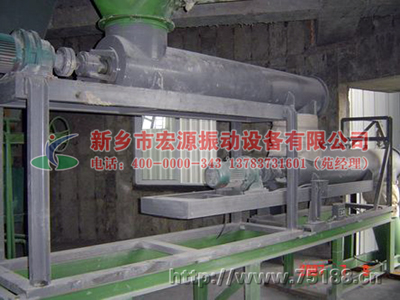

螺旋给料机使用现场图
Working site
螺旋给料机的特点：
1、重力称重与螺旋输送方式结合，实现动态连续计量；2、结构紧凑，运行稳定可靠；
3、自动计量标定系数，自动测量系统零点；
4、手动置入各种参数，运行操作可手动/自动切换；
4、具有仪表自诊断和计算机联网功能
Characteristic
1, gravity weighing with spiral transportation mode, realize the dynamic continuous measurement;
2, compact structure, stable and reliable operation;
3, automatic metering calibration coefficient, automatic measurement system is zero;
4, manual in various parameters, operation manual/automatic switching;
4, with functions of instrument self-diagnosis and computer networking
