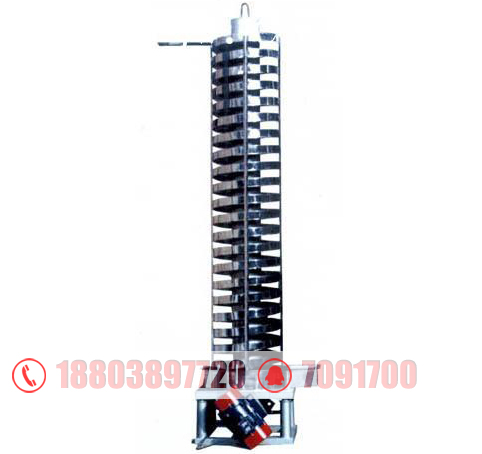

垂直振动提升机产品概述
垂直振动提升机可以对一切颗粒状、块状、粉状的固体物料(粘度不大)都可以输送，是我厂生产的一种新型的垂直振动输送设备。采用振动电机作振动源，利用两振动电机的合成振幅，将物料沿螺旋输送槽向上输送。
Product overview
Vertical vibration elevator to all granule, block, powder of solid materials (little) viscosity can transport, is our factory production of a new type of vertical vibration conveyer equipment.The vibration motor as vibration source, the use of two synthesis amplitude of vibration motor, the material along the spiral groove up transportation.
垂直振动提升机结构简单,维修容易，物料定量送出，输送量连续可调，可作为各行业中,小颗粒物料的垂直输送之用.除具有从下向上提升物料外,还可以完成对物料的干燥、冷却作用.分开槽式、封闭式两种结构，并可根据不同工艺的要求，设计物料颗粒分级作用的筛选提升机及设计易燃易爆物料的提升机。在化工、橡胶、塑料、医药、轻工、食品、冶金、建材、矿山、粮食等行业中均有着广泛应用。
Vertical vibration elevator has simple structure, easy maintenance, send the material quantitative, throughput continuous adjustable, can be used for various industries, small particle materials of vertical transportation. Besides has the material from the bottom up, also can complete drying, cooling effect of the material. Separate groove, and enclosed two kinds of structure, and can according to the requirements of different process, the design of material particle gradation selection hoist and hoist design inflammable and explosive materials.In the chemical industry, rubber, plastic, medicine, light industry, food, metallurgy, building materials, mining, which is widely used in food industry, etc.
垂直振动提升机工作原理
首先要明白垂直振动提升机的结构，主要由提升槽、振动电机、减振系统和底座等组成。垂直振动提升机采用振动电机作为振动源，固定在提升槽上的两台相同型号的振动电机中心线交叉一定角度安装，并做相反方向自同步旋转，振动电机所带的偏心块在旋转时各个瞬间位置所产生的离心力之分力沿抛掷方向作往复运动，使支承在减振器上的整个机体不停振动，使物料在提升槽内被抛起的同时向上运动，物料落入入料槽后，开始被抛起，此时可以使物料与空气充分接触，还可以起到散热冷却的作用.该提升机对粉状、块状和短纤维状的固体物料（有粘性和易结块的除外）都可垂直输送，还可以完成对物料的干燥、冷却作用.分敞开式、封闭式两种结构。
Working principles
FIrst understand the structure of the vertical vibration of elevator, mainly by the improvement slot, vibration motor, vibration isolation system and the base, etc.Vertical vibration of elevator using vibration motor as vibration source, on the improvement slot with the two sets of the same type of the center line of the cross Angle vibration motor installation, and do the opposite direction from the synchronous rotation, vibration motor with eccentric block rotates at every instant position of the centrifugal force generated by the component along the casting direction for reciprocating motion, make the bearing on the shock absorber of whole body vibration, make the material being thrown up in the improvement slot upward movement at the same time, the material fall into the trough, start being thrown up, at this time, you can make a good contact with raw material and air, also can have the effect of thermal cooling. The hoist of powder, block and short fibrous solid materials (except for a viscous and caked) can be vertical transmission, also can complete drying, cooling effect of the material. Open and closed two structures.
DZC系列垂直振动提升机视频
Animation Shown
垂直振动提升机特点
1.产品占地面积小，便于工艺布置。
2.物料可向上输送，亦可向下输送。
3.噪音低，结构简单，安装、维修便利。
4.结构简单合理、能耗小,节约电能，料槽磨损小。
Characteristic
1. The products cover an area of an area small, easy to process arrangement.
2. The material can be upward transportation, can also be transmitted downward.
3. Low noise, simple structure, convenient installation, maintenance.
4. Simple and reasonable structure, little energy consumption, save electricity, wear small manger.
DZC系列振动提升机型号说明：
Types Specifications

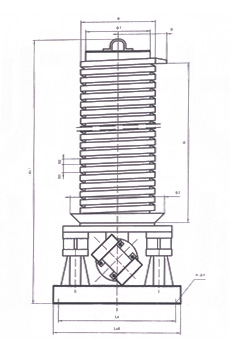

DZC型系列垂直振动提升机安装尺寸
Installation dimension
当DZC型系列垂直提升机工作时，根据双振动电机自同步原理，由振动电机产生激振力，强迫整个输送塔体作水平圆运动和向上垂直运动的空间复合振动，螺旋槽内的物料则受输送槽的作用，作匀速抛掷圆运动，沿输送槽体向上运动，从而完成物料的向上（或向下）输送作业。
When DZC series vertical hoist work, according to the principle of dual vibration motors self-synchronization, produced by the vibration motor excitation force, force the transmission tower body horizontal circular motion and vertical upward movement space complex vibration, material of spiral groove is the role of the conveying groove, a uniform circular motion, throwing down the conveyor tub upward movement, so as to complete material transport operation up (or down).
| 型号 | Φ | Φ1 | Φ2 | H | H1 | H2 | H3 | D | Lx8 | Ld×Bd | Φd |
| DZC300 | 300 | 146 | 500 | ～2000 | ～2750 | 40 | 75 | 270 | 680×680 | 11 | |
| DZC500 | 500 | 219 | 850 | ～3000 | ～4020 | 50 | 80 | 475 | 1080×1080 | 880×880 | 13 |
| DZC550 | 550 | 245 | 900 | ～3500 | ～4530 | 55 | 85 | 500 | 1100×1100 | 900×900 | 13 |
| DZC600 | 600 | 273 | 950 | ～4000 | ～5150 | 60 | 85 | 525 | 1100×1100 | 900×900 | 15 |
| DZC800 | 800 | 351 | 1200 | ～4500 | ～5650 | 60 | 90 | 650 | 1300×1300 | 1050×1050 | 15 |
| DZC850 | 850 | 402 | 1250 | ～5000 | ～6150 | 65 | 100 | 675 | 1400×1400 | 1150×1150 | 17 |
| DZC900 | 900 | 530 | 1300 | ～6000 | ～7180 | 65 | 110 | 700 | 1600×1600 | 1300×1300 | 17 |
DZC系列振动提升机技术参数表
Parameters
| 型号 |
输送量 (t/h) |
输送槽直径 (mm) |
输送宽度 (mm) |
输送高度 (m) |
振次 (min) |
双振幅 (mm) |
电动功率 (kw) |
重量 (kg) |
| DZC300 | ～1.0 | 300 | 77 | ≤2.0 | 960 | 6～7 | 2×0.4 | 680 |
| DZC500 | ～2.0 | 500 | 140 | ≤3.0 | 6～8 | 2×0.75 | 1010 | |
| DZC550 | ～3.0 | 550 | 152 | ≤3.5 | 6～8 | 2×1.5 | 1190 | |
| DZC600 | ～3.0 | 600 | 163 | ≤4.0 | 6～7 | 2×1.5 | 13210 | |
| DZC800 | ～4.0 | 800 | 224 | ≤4.5 | 6～8 | 2×2.2 | 1590 | |
| DZC850 | ～4.0 | 850 | 224 | ≤5.0 | 6～9 | 2×2.2 | 1750 | |
| DZC900 | ～3.5 | 900 | 185 | ≤6.0 | 6～9 | 2×3.0 | 2100 |
我公司生产的垂直振动提升机占地面积小、结构简单、合理；动力消耗小、无噪音、维修方便，也可以根据客户要求定制设计相应的型号。欢迎致电：400-0000-343。
My company produces the vertical vibration of elevator cover an area of an area small, simple structure, reasonable;Little power consumption, no noise, easy maintenance, can also according to customer request custom design corresponding model.Welcome to call: 400-0000-343.
