板式给料机为连续输送物料机械的一种，主要用于中小型水泥厂作为石灰原矿一级破碎喂料，也适用于冶金、煤炭、化工、电力、建材、机械制造及其它工业部门。
1,Product overview
Plate type feeder is a kind of continuous conveying material machinery, mainly used for small and medium-sized cement plant as limestone ore crushing feed, can also be applied to metallurgy, coal, chemical industry, electric power, building materials, machinery manufacturing and other industrial sectors.

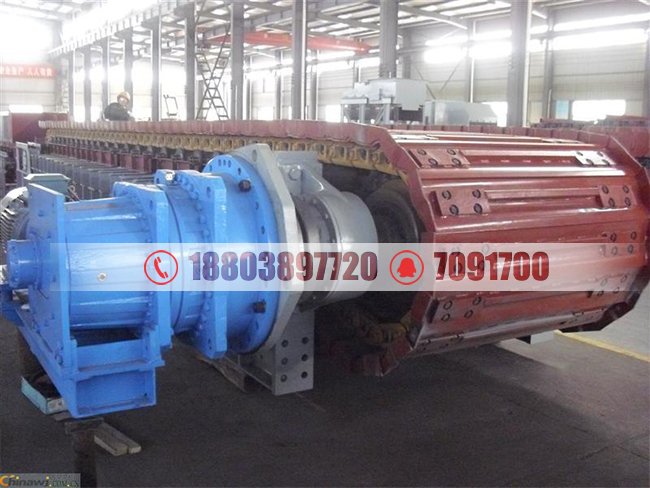

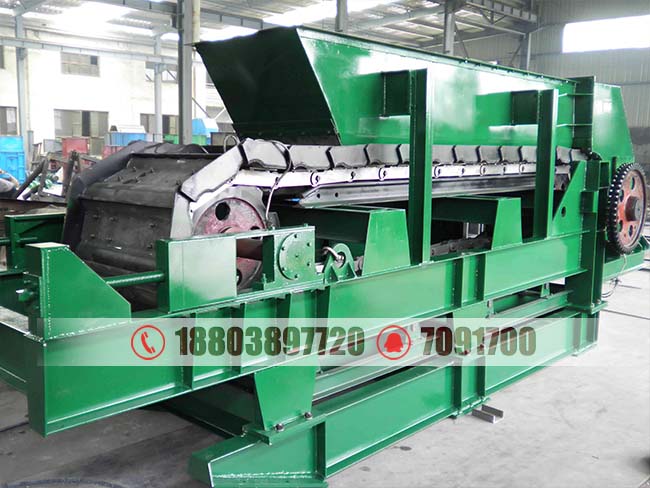

二、板式给料机图片
二、机型特点
1、适用范围广，对具有锋利棱角的和对输送机有强烈磨损性的物料或成件物品都可输送，而且输送物料块状(粒度)大（300-450mm以下）。还适宜输送小于400°C以下的高温物料。
2、牵引链条强度高，可作较长距离的输送，本产品最大输送长度可达15m。
3、布置灵活，板式给料机可左传动，也可右传动，可水平输送物料，也可倾斜输送物料。其倾斜角0≤a≤30°。用户可根据实际现场选定。
4、链板抗弯强度大，耐冲击。
5、运行平稳可靠、噪音小。
2.Characteristic
1, wide applicable scope, with sharp edges and corners of conveyor and strong abrasion resistant materials or items can transport, conveying material and block (granularity) (300-450 - mm below).Also is suitable for conveying is less than 400 ° C under high temperature materials.
2, high traction chain strength, can make a long distance transmission, this product is the largest transmission length up to 15 m.
3, flexible layout, plate type feeder can drive on the left, also can drive right, conveying material level, conveying material can also be tilted.The tilt Angle 0 or less a 30 ° or less.User can be selected according to the actual scene.
4, chain plate bending strength, impact resistance.
5, stable and reliable operation and low noise.
三、主要技术参数
1、规格及参数
型号WBL
链板长度1000mm
链条节距 320mm
给料机头尾中心距 4000mm
安装斜度 0≤a≤30°任意选取
给料机速度 0.018-0．1m/s
2、输送能力
规格 1250mm×10000mm
输送量 65-150t/h
3规格 1000mm×4000mm
最大宽度2270mm
整机高度 2000mm
3.Parameters
⑴, the specifications and parameters
WBL model
Chain plate length is 1000 mm
The chain pitch 320 mm
The feeding head tail center distance 4000 mm
Installation Angle 0 or less a 30 ° or less arbitrary selection
Feeder speed is 0.018 0.1 m/s
⑵, the transmission capacity
Specifications for 1250 mm * 10000 mm
Throughput of 65-150 t/h
1000 mm * 4000 mm 3 specifications
Maximum width of 2270 mm
The machine at 2000 mm
四、结构
板式给料机主要由以下若干部件组成：
1、传动装置：传动装置包括电动机、减速机、传动链轮、皮带轮、机架等。
2、头轮装置包括头部机座、主动轴、链轮、传动轴、前机架等。
3、链条
4、链板
5、尾轮装置：包括链轮、后机架、拉紧装置等。
6、支承与拦板
7、中间架
以上各部分出厂前己装配好，安装时根据总装图的形式及基础位置就位即可。
Four, structure,
Plate type feeder is mainly composed of the following several parts:
1, transmission device, transmission device include motor, reducer, chain wheel, pulley, frame, etc.
2, the first round, including the head frame, drive shaft, wheel shaft, front frame, etc.
3, chain
4, chain plate
5, tail wheel device: sprocket, back frame, tension device, etc.
Six, bearing and block plate
7, intermediate
The above parts have been assembled before delivery from factory, when installation according to the assembly diagram forms and basic position in place.
五、输送原理
板式给料机的动力由传动装置的电动机驱动，经减速机减速后，再经传动链轮把动力传到主动轴上。此时，装在主动轴上的两个链轮就跟轴转动。另外与头部、尾部链轮相啮合的两条链条也随着主动链轮和尾轮的转动而向前移动，链板安装在链条上面与链条作同步运动。
链板的作用是承受物料的全部重量，随着链条的移动，链板也完成了运送物料的过程。
Five, transmission principle
Plate type feeder driven by gear motor drive, after reducer reducer, then through the drive sprocket on the power to the drive shaft.At this point, the two chain wheel mounted on the drive shaft with shaft rotation.In addition to the head, tail sprocket meshing of two as the drive sprocket and chain tail wheel rotation and move forward, chain plate installed on the chain and chain synchronous movement.
The role of the chain plate is to carry the full weight of the material, with the moving of the chain, chain plate also completed the process of transporting materials.
